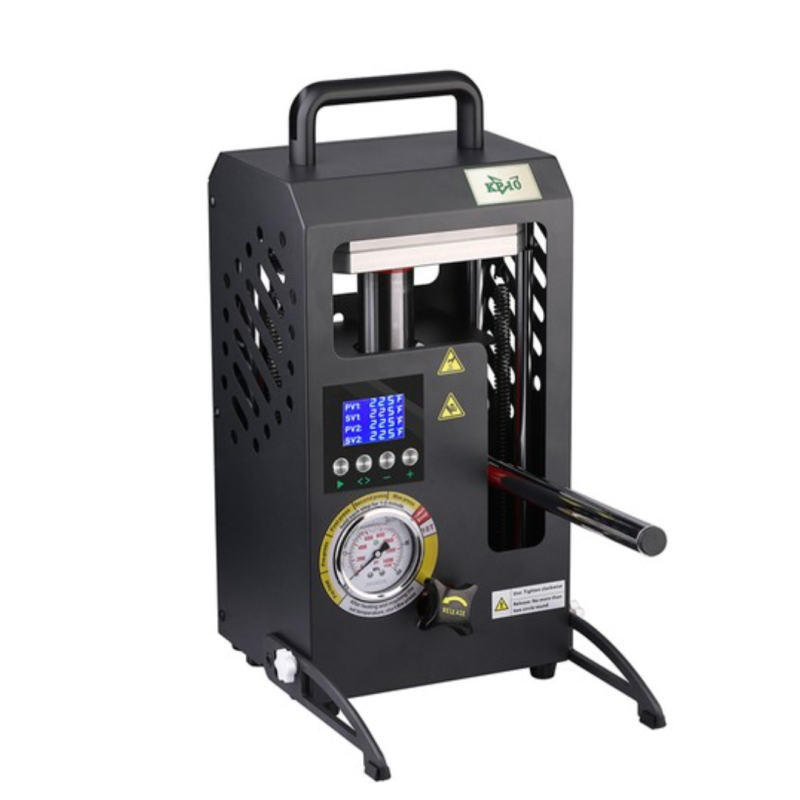

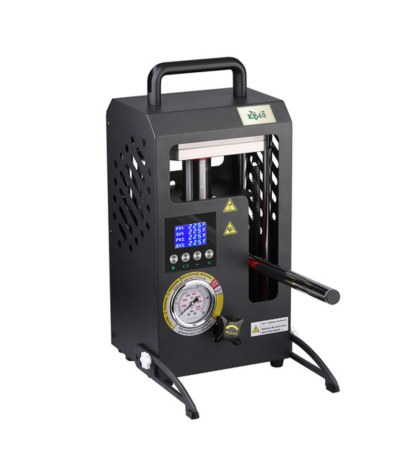

Hydraulic Heat Press Machine 10 Ton

Dual Heating Plates with Precision Control

The machine is equipped with two thick 7075 aviation aluminum heating plates (6"*6") that are resistant to high temperature and high pressure. When heated, the power is 700W and the performance is stable. The temperature can quickly rise to 300 ℉, achieving uniform and rapid heating.

10T Hydraulic Jack

A 10T manual hydraulic jack applies high pressure to the sheet metal to improve the efficiency of hot pressing, and helps the high-precision hydraulic gauge display real-time pressure during the pressing process.

Temp-controlled LCD Screen

The intelligent temperature control LCD screen has clear markings, sensitive buttons, and separate control of the upper and lower heating plates for easy operation, making the hot press machine more efficient and accurate.

Multi-protection

High temperature resistant circuits, short circuits, overvoltage, and overtemperature protection ensure safe use of this machine. In addition, the heat sink design provides excellent heat dissipation performance, preventing the machine from overheating and causing burns.

Heat Press Machine

• Double Heated Plate
• 2/4/5/10 Ton Pressure
• Convenient Knob
• Temperature Control

• Specification

  General	Brand: LTQ VAPOR Type: Heat Press Machine Model: KP-10 Color: Black
  Specification	Jack Specification: 10 Tons Power Supply: 90 - 260V Machine Metal Shell Size (mm): 203*170*364 Heating Plate Material: Aviation Aluminum Alloy 7075 Heating Plate Size (mm): 150*150*15 Upper And Lower Heating Plate Space (mm): 61 Heating Power: 300w - 700w (power varies with voltage: voltage is 110v, power is 300w; voltage is 220v, power is 700w) Heating Time (from 25°C to 105°C): 11 - 13 Minutes
  Weight & Size	Product Weight: 17kg Package Weight: 18.42kg Product Size(L x W x H): 236*299*430mm Package Size(L x W x H): 505*285*273mm
  Package Contents	1 x Heat Press Machine 1 x Power Cable 5 x Rosin Press Bag 1 x Collection Tool 10 x Baking Paper 1 x Silicone Box 4 x Magnet 6 x Sticker 1 x User Manual
