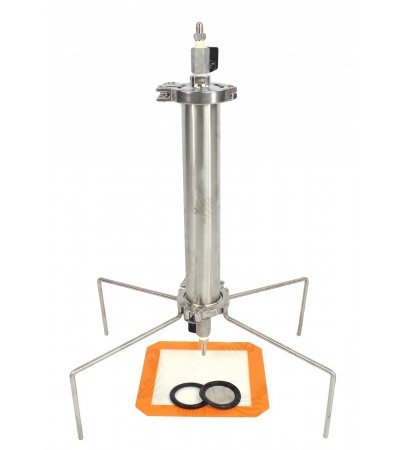

304 Stainless Steel 56G Closed Column Pressurized Extractor - 12" Extractor

The 12’’ Pressurized Closed Column extractor consists of an easy to work design and allows you to shut of the valves and soak the material. This process produces increased yields but also provides increased control and safety. Kit Includes: • Platinum Cure Silicone Non-Stick Pad • 304 Stainless Steel Material Tube • 304 Stainless Steel Barb/Flare End Caps with Heavy Duty Miniature Ball Valves • 304 Stainless Tri-Clamp Ferrule • 1 x ¼’’ Drain Plug • 1 x Viton Gasket 1.5” • 1 x Viton 150micron Mesh Gasket 1.5’’

Closed Column Pressure Extractor (Comes with 1 yr. Limited warranty, excludes gaskets and screens)
This system allows the user to build up solvent pressure by closing the valve, pulling a vacuum and
filling the extractor, Extractor will fill about 85% with solvent before the internal pressure will equal the
pressure of the can propellant.
The solvent can will fit into either port with a tip adapter supplied with some butane cans, tip adapter
required, not included
Solvent Soak is expected to be between 30-90 min, but this all depends on material, starting with frozen
cans of solvent is recommended
This system allows the user to soak the material before opening the bottom valve to release the solvent
and oil.
requires vacuum pump not included
Description:
Traditional closed column Extractor. All parts made from 304 Stainless Steel.
Complete safety at low temperature and high pressure.
The solvent can will fit into the top cap hole
Vacuum clamps at all interfaces make for easy clean. High Polish Interior.
Gaskets are designed for Oil Processing. Temp range (-20…+200)oC
Type of tube 1.5” x 6” (38mm x 150mm). Volume 187ml.
Tubes Hold either 45g, (1.5 oz) of dry material (Approximately)
Includes:
1 x 1.5” Tri-Clamp Pipe 6” (150mm) long made of Stainless Steel 304.
1 x 1.5” Quadpod
2 x 1.5” Tri-Clamp fitting FNPT 1/4"
1 x 1.5” Single Pin Clamp
1 x 1.5” Tri-Clamp Viton Screen gasket 150 mesh stainless steel
1 x 1.5” Tri-Clamp Viton gasket
2 x Ball Valve 1/4" , Full Port FNPT, SS304.
1 x Adapter JIC - NPT stainless steel 304 . Size ¼"
